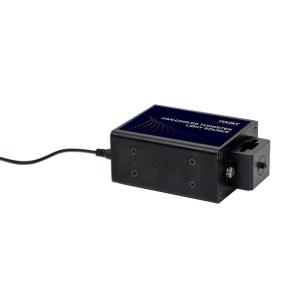

YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm

Ask Latest Price
Warranty :1 year
Customized support :OEM, ODM
Place of Origin :Zhejiang, China
Brand Name :YIXIST
Model Number :YLS-8301-03
Size :110mm*90mm*52.5mm
Wavelength Range :400 nm-2500 nm
Model :YLS-8301-03
Dimension :110mm*90mm*52.5mm
Power :15VDC, 2A
Lamp :10W, 2000 H (Typical)
Cooling :Fan
Price :$369.00/pieces >=1 pieces
MOQ :1 unit
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
PRODUCT OVERVIEW
YLS-8301-03 adopts fan cooling and is designed with a voltage regulation circuit, which greatly improves the stability of spectral output and the useful life of the illuminant, and is a compact tungsten illuminant that is very suitable for visible-NIR absorption spectroscopy and reflection spectral measurement. In addition, the illuminant can be configured install filters to obtain the corresponding wavelength of light. Available with modular accessories such as reflectivity and transmittance, the illuminant can be combined with a spectrometer to form a basic spectral analysis system for classroom instruction and student experiments.

Feature

Designed with voltage regulator circuit and fan cooling, the output spectrum is extremely stable and significantly improves the useful life of the light source, making it ideal for visible-NIR spectroscopy analysis.
Detachable SMA905 fiber optic connector for convenient installation of filters or attenuators.
Modular and rich accessory design, can be expanded into a spectral analysis system for measuring transmittance, absorbance, reflectivity, very suitable for experimental teaching.

Application

As a reference illuminant for visible-NIR spectral analysis, it is used for the measurement of transmittance, absorbance and reflectivity. Together with the transmittance and reflectance measurement modules, a spectral analysis system for experimental teaching is formed.
PRODUCT SPECIFICATIONS
Model
YLS-8301-03
Wavelength Range
400 nm-2500 nm
Lamp
10W, 2000 H (Typical)
Power
15VDC, 2A
Cooling
Fan
Dimension
110mm*90mm*52.5mm
EXPAND TO A SYSTEM
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
TYPICAL TESTING
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
RELATED ACCESSORIES
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
Diffuse Reflectance Standards
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
Spectrometer
YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
Fiber Holder
