China 50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options wholesale

50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options

Name: 50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
Brand: YIXIST
Price: 1 USD

Ask Latest Price

Warranty :1 year

Customized support :OEM, ODM

Place of Origin :Zhejiang, China

Brand Name :YIXIST

Model Number :YPM-8203-02-FL

Size :70 mm*70 mm*70 mm

Wavelength Range :0.19-20um, 0.19-20um

Model :YPM-8203-02-FL

Dimension :70 mm*70 mm*70 mm

Material :Thermopile

Power Range (wIthout attenuator) :0.05-50W

Response Time :3s

Linearity :±2%

Uniformity :±2%

Active Diameter :10mm

Cooling :Fan

Price :$1,254.00/pieces >=1 pieces

MOQ :1 unit

Contact Now

Add to Cart

View Product Description

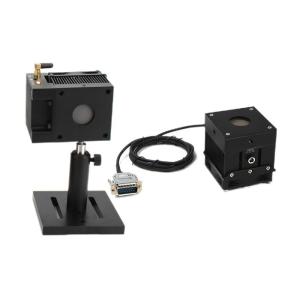

50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options

PRODUCT OVERVIEW

The Thermopile Power Detector is specifically engineered for accurately measuring laser power levels between 0.05W and 50W. To accommodate various user preferences, the detector presents two data acquisition alternatives: a DB15 connection featuring a meter display, and a Bluetooth/USB connection enabling seamless computer integration.

YPM-8203-02-F-L uses DB15 interface, which need to connect the power meters.It can be used on the meter for data reading, data storage and power monitoring. In addition, a USB communication interface is reserved on the meter, which can expand the data collected on the detector and upload the data to the optical power meter software on the PC for online data acquisition and analysis.

Calibration

Every detector undergoes individual calibration and is accompanied by a factory calibration certificate, with the calibration data stored directly on the detector itself.

We offer calibration services, and to guarantee precise measurements, we recommend calibrating the detector annually.

Customized service

We can provide customized services according to user requirements.

PRODUCT SPECIFICATIONS

Model	YPM-8203-02-0002-F-L
Connect	DB15 With the power meter
Material	Thermopile
Wavelength range	0.19-20um
Max Average Power Density	10kW/cm2（1064nm/10W/CW）
Max Average Power Density		3.2kW/cm2（10640nm/10W/CW）
Maximum Energy Density	5J/cm2(1064nm,360us,5Hz)
		1J/cm2(1064nm,7ns,10Hz)
		0.6J/cm2(532nm,7ns,10Hz)
		0.3J/cm2(266nm,7ns,10Hz)
Maximum Average Power (Typical value)	50W（continuous）； 70W（<1minute）
Power range	0.05-50W
Calibration Uncertainty	±3%@1064nm, 10640nm
Calibration Uncertainty		±5%@190-20000 nm
Linearity	±2%
Uniformity	±2%
Response Time	3s
Active Diameter	10mm
Cooling	Fan
Dimensions（LWD)	70 mm×70 mm×70 mm

DIMENSION

RELATED ACCESSORIES

Power Meter

Integrating Sphere Power Detector

Photodetector
